Wiper System Trainer Board Panel
The Wiper System Trainer Board Panel is based on a real automotive windshield wiper and washer system, providing a practical platform for studying system components, operating principles, electrical signals, and common faults. Students can operate the actual controls, observe system operation, measure circuit parameters, and perform fault-diagnosis exercises through the built-in fault simulation system.
Price: Approximately US$1,060 – US$1,349 / set

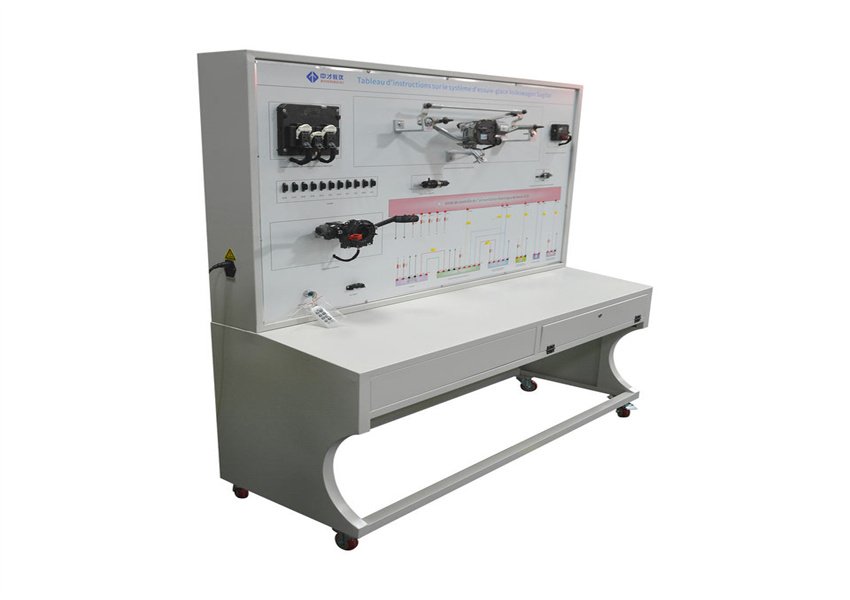

Wiper System Trainer Board Panel Systems & Training Functions
The trainer integrates the main components and controls of an automotive windshield wiper and washer system, combining real operation, electrical measurement, status indication, and fault simulation in one training platform.
1. Wiper Control System: Includes the wiper switch and wiper control relay for studying the control relationship within the windshield wiper system.
2. Wiper Drive System: Includes the wiper motor and linkage mechanism for demonstrating the actual conversion of motor operation into wiper movement.
3. Washer System: Includes the washer motor, washer fluid bottle, and washer nozzles for practical training on the windshield cleaning function.
4. Electrical Measurement: Circuit test terminals allow learners to measure voltage, current, resistance, and other relevant electrical signals.
5. Operating Status Indication: LED indicators show the operating status of the motor during practical exercises.
6. Fault Simulation System: The built-in fault-setting system can simulate 12 common vehicle faults for diagnostic practice.
7. Control Panel & Color Schematic: The control panel and color schematic provide direct access to the system controls and circuit representation during training.

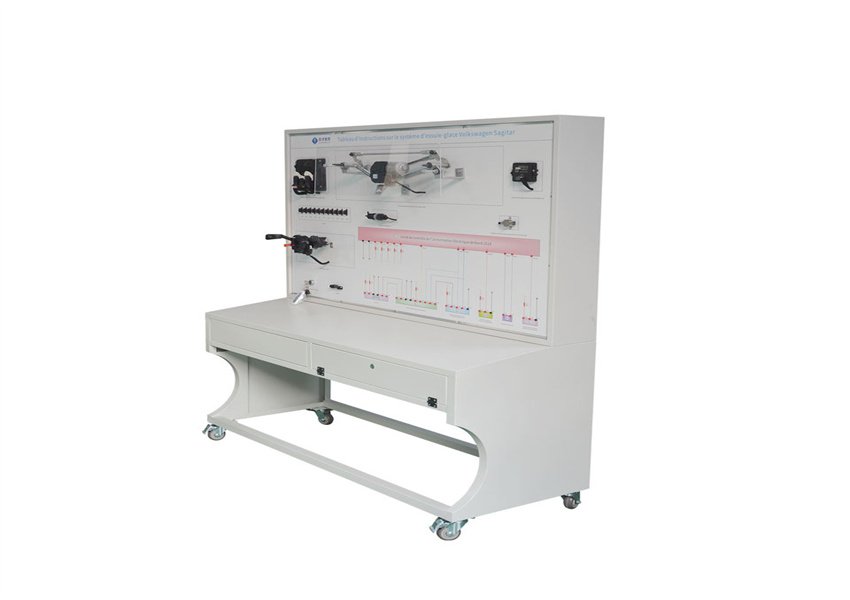

Practical Training Workflow
The training process follows the actual relationship between control input, motor operation, washer operation, electrical signals, and fault behavior.
1. Identify the Wiper and Washer System: Identify the wiper switch, relay, motor, linkage, washer motor, fluid bottle, nozzles, and related circuit connections.
2. Operate the Wiper Controls: Operate the switches and buttons to activate the windshield wiper system and observe its actual operating process.
3. Observe Motor and Linkage Operation: Observe the motor status and the movement produced through the wiper linkage mechanism.
4. Operate the Washer System: Activate the washer function and observe the operation of the washer motor and spray system.
5. Measure Electrical Signals: Use the circuit test terminals to measure voltage, current, resistance, and other relevant signals at the required test points.
6. Introduce and Diagnose Faults: Apply the configured fault conditions and use system operation and electrical measurements to identify abnormal behavior and locate the fault.
Custom Wiper System Trainer Board Panel
Customization can be defined around the windshield wiper system configuration, washer-system arrangement, and diagnostic training scope required by the customer’s training program.

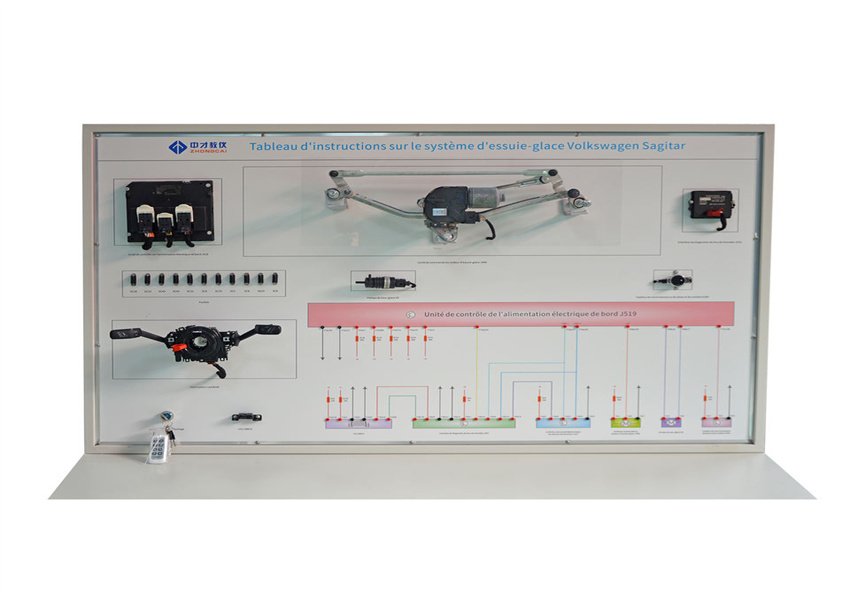

Wiper System Configuration
Define the required wiper control, relay, motor, and linkage configuration according to the intended training tasks and system structure.

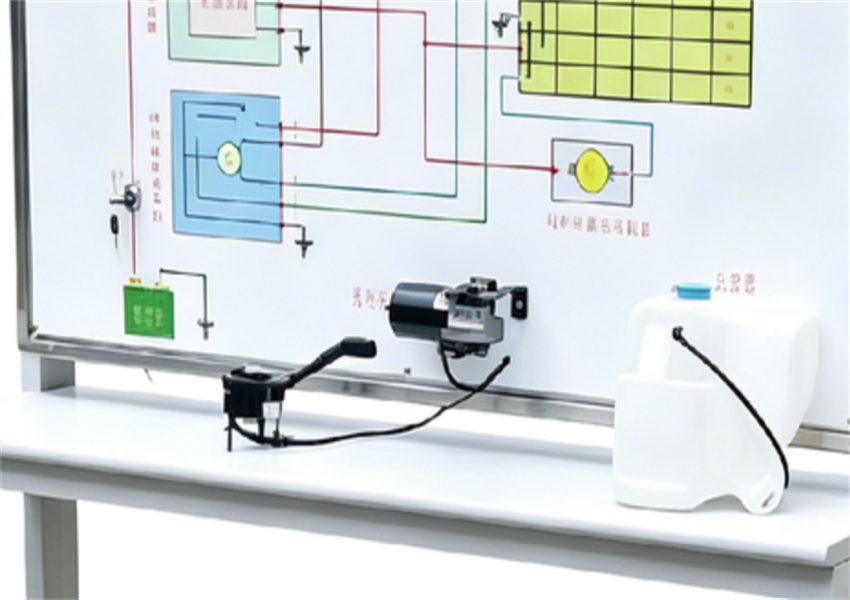

Washer System Configuration
Configure the washer-related components and operating arrangement required for practical training on windshield cleaning functions.

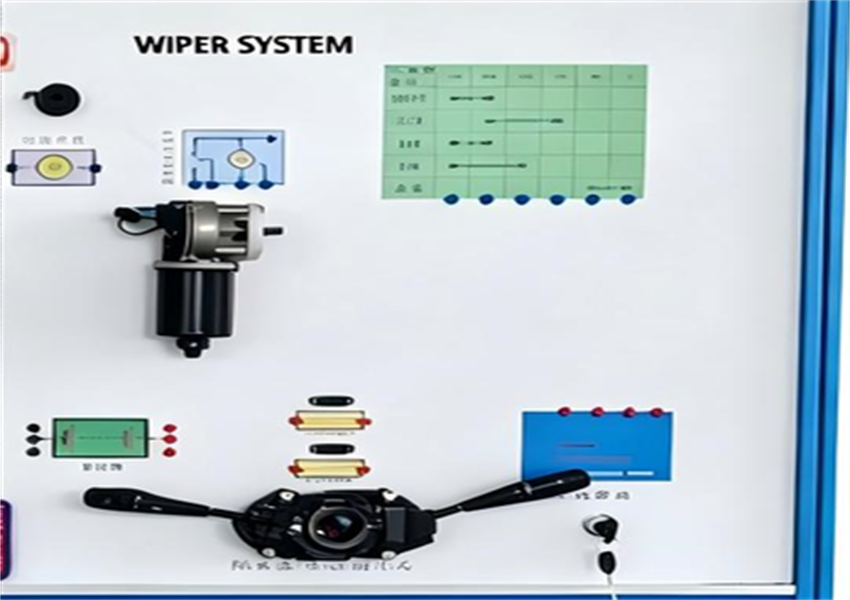

Fault-Diagnosis Training Scope
Define the required fault-simulation and diagnostic training scope according to the faults that learners need to practice, including the applicable fault-setting requirements.
Wiper System Trainer Board Panel Price, Lead Time, Shipping & Installation
Send Your Inquiry Today
FAQ About Wiper System Trainer Board Panel
1.Why use a real wiper system instead of a circuit-only training board?
A real wiper system allows learners to connect electrical signals with the physical behavior of the motor and linkage mechanism. This makes it possible to study not only whether a circuit has a signal, but also how the system responds when the actual components operate together.
2. What makes the fault-diagnosis training different from simply demonstrating a fault?
The trainer allows learners to investigate the fault through system behavior and electrical measurements rather than only being shown a predefined fault condition. This creates a practical link between the observed symptom, measured signal, and diagnostic process.
3. Can the trainer support repeated practice with different diagnostic scenarios?
The built-in fault-setting system provides multiple fault conditions within the same training platform, allowing instructors to assign different diagnostic exercises without changing to a different training system. The configured fault scope should be confirmed for the specific equipment.
4. Is the equipment suitable for teaching both system theory and practical skills?
The physical components, color schematic, control panel, real operation, electrical test terminals, and fault simulation function can be used together in one training process. This allows instructors to move from explaining system structure and operating principles to hands-on testing and diagnosis.
5. How can I know whether the standard configuration is enough for my training program?
Start with the training tasks rather than individual component specifications. If the standard equipment already covers the required wiper/washer operation, electrical testing, and diagnostic exercises, no additional customization may be necessary; HS can help identify configuration differences when your training requirements go beyond the standard scope.
6. What information should I send HS when requesting a quotation?
You can start with the training tasks, required wiper and washer functions, expected electrical measurement activities, and whether fault-diagnosis training is required. If you do not yet have a detailed technical specification, these training requirements are sufficient for HS to begin defining a suitable configuration.
