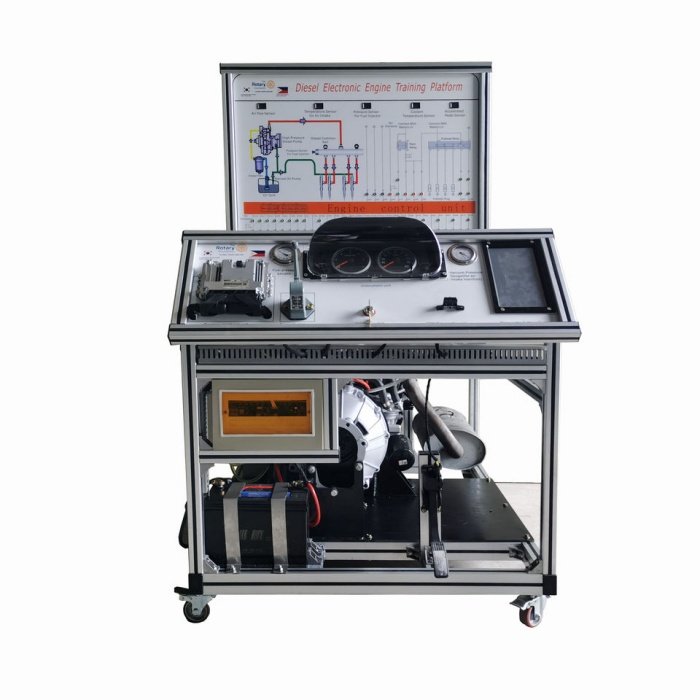

Diesel Engine Training Bench
The Diesel Engine Training Bench provides a practical bench-based platform for training in diesel engine operation, engine systems, electrical and electronic control, measurement, maintenance, and troubleshooting. The selected diesel engine is presented in an accessible training configuration, allowing trainees to study system relationships and perform practical tasks around engine operation and maintenance.
Price: approximately US$4,800–6,800/set

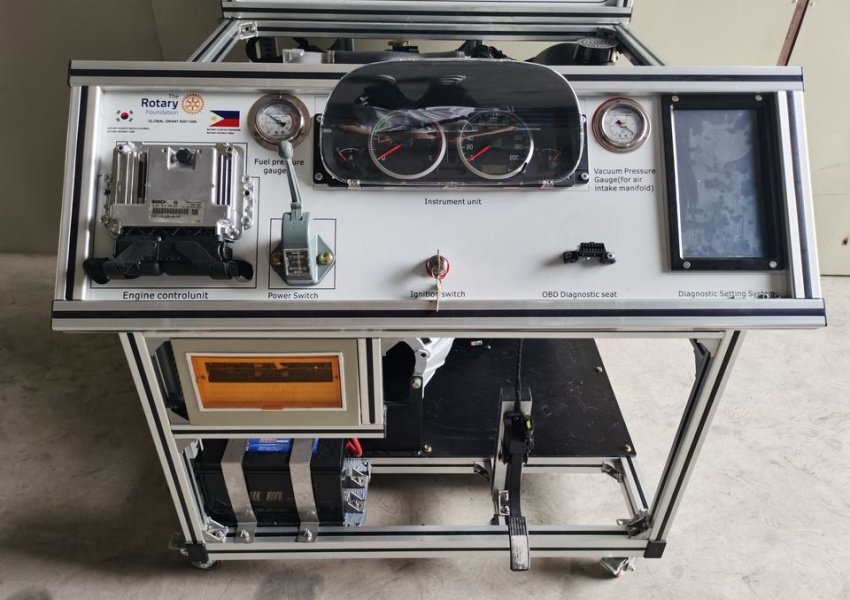

Diesel Engine Training Bench Systems & Training Functions
The Diesel Engine Training Bench can be configured around different diesel engine platforms and practical training requirements, with the training scope extending from engine operation and system observation to measurement, maintenance, troubleshooting, and applicable diagnostic training.
1. Diesel Engine Platform: Configure the required diesel engine platform and applicable engine system arrangement according to the intended training scope.
2. Diesel Engine Operating Systems: Training can cover the configured fuel, intake, exhaust, cooling, lubrication, and other applicable diesel engine systems.
3. Electrical & Electronic Control: The selected configuration can include applicable diesel engine electrical circuits, sensors, actuators, and electronic control functions.
4. Engine Operation & System Observation: Where a running configuration is provided, trainees can operate the engine and observe the relationship between engine operation and the configured systems.
5. Test Points & Measurement: Specified test points and measurement interfaces can be configured for electrical testing, system checks, and practical analysis.
6. Maintenance & Troubleshooting: The training scope can include selected inspection, maintenance, troubleshooting, and post-maintenance verification tasks.
7. Diagnostic Functions: Applicable diagnostic interfaces and diagnostic training functions can be configured where required.
From Engine Operation to Troubleshooting: Practical Training Workflow
The Diesel Engine Training Bench supports a practical workflow that connects diesel engine system identification with operation, testing, analysis, maintenance, and troubleshooting. The specific workflow depends on the selected engine platform and training configuration.
1. Identify the Diesel Engine System: Identify the selected diesel engine platform, major components, system arrangement, and applicable electrical or electronic control elements.
2. Inspect Engine Condition: Inspect the configured engine systems, accessible components, connections, and relevant test points before operation or measurement.
3. Observe Engine Operation: Where running functions are configured, operate the engine under the available conditions and observe the response of the relevant systems.
4. Perform Testing & Measurement: Use the specified test points or measurement interfaces to check electrical signals, system conditions, or other configured parameters.
5. Analyze & Troubleshoot: Compare the test results with the expected system condition, identify abnormal conditions, and perform the applicable troubleshooting or maintenance task.
6. Verify System Operation: Recheck the relevant system after the practical task and verify the engine or configured system condition.
Custom Diesel Engine Training Bench
HS can customize the Diesel Engine Training Bench around the required diesel engine platform, practical training scope, engine operating requirements, and applicable measurement or diagnostic functions. Specific configurations are confirmed according to the curriculum and project requirements.

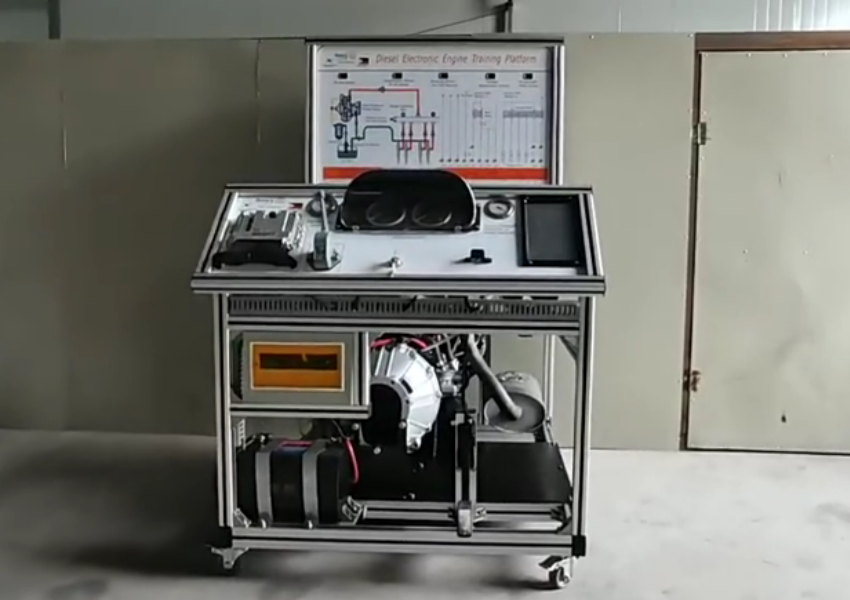

Diesel Engine Platform & System Configuration
Specify the required diesel engine platform and applicable engine system configuration for the intended training scope.

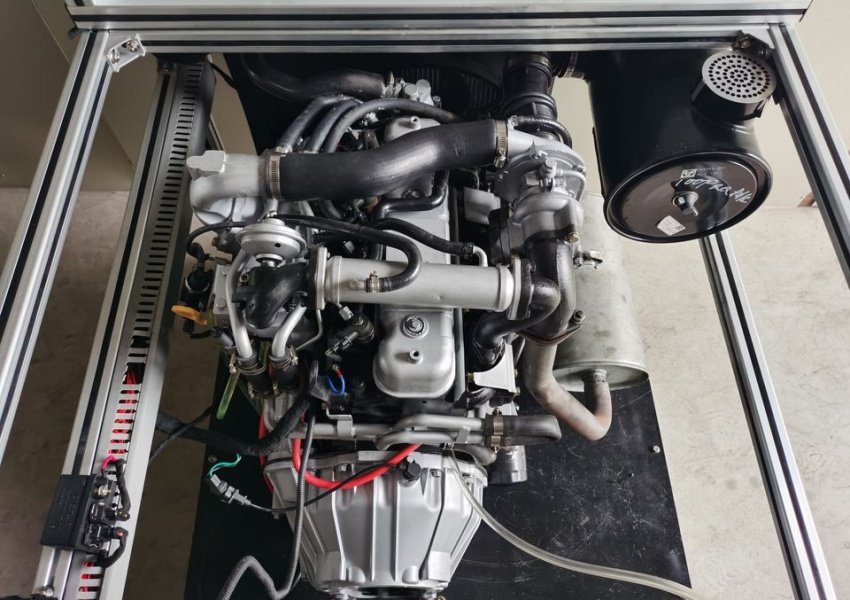

Engine Operation & Training Scope
Define the required engine operating conditions, system training tasks, and practical training scope.

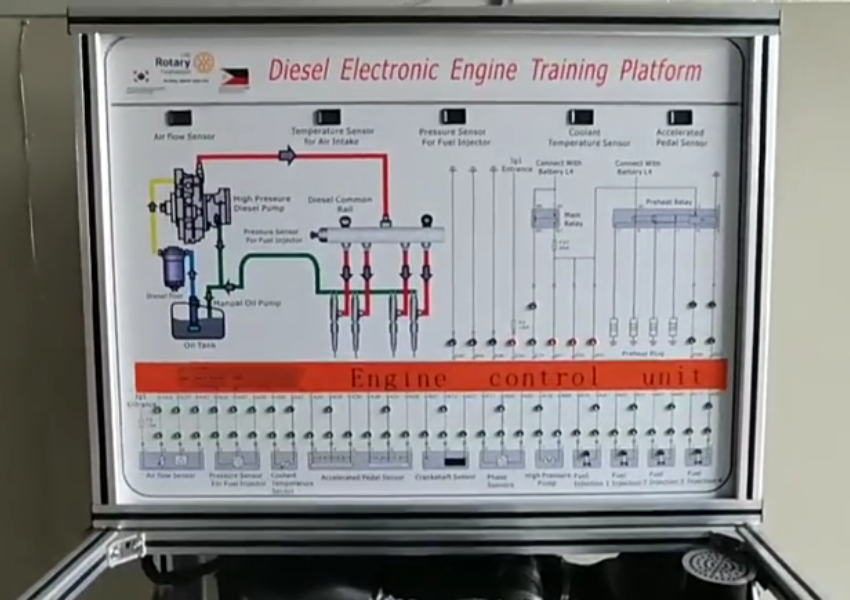

Measurement & Diagnostic Configuration
Configure the required test points, measurement functions, and applicable diagnostic training functions according to the training requirements.
Diesel Engine Training Bench Price, Lead Time, Shipping & Installation
Send Your Inquiry Today
FAQ About Diesel Engine Training Bench
1. Is a Diesel Engine Training Bench intended for engine operation or mainly for system demonstration?
A Diesel Engine Training Bench can be configured around practical engine operation rather than only static component presentation. Where running functions are included, the training can connect engine operation with system observation, testing, maintenance, and applicable troubleshooting.
2. What is the difference between a Diesel Engine Training Bench and a Diesel Common Rail Engine Electric Control System Training Board?
The Training Bench is centered on the complete diesel engine and its practical operating and maintenance environment, while the Common Rail Engine Electric Control System Training Board focuses more specifically on electronic control circuits, signals, measurement, and diagnostic analysis within the common rail system.
3. When should a diesel engine bench be selected instead of a disassembly and assembly trainer?
A Diesel Engine Training Bench is more relevant when the curriculum requires engine operation, system observation, measurement, or applicable troubleshooting. A Diesel Engine Disassembly and Assembly Trainer is more focused on component removal, inspection, refitting, and mechanical assembly procedures.
4. Does the selected diesel engine type affect the training scope?
Yes. The selected engine platform determines the applicable engine systems, control architecture, accessible test points, and related training tasks. The engine should therefore be selected together with the curriculum and required practical operations.
5. Can the bench be configured for diesel engine electrical and electronic control training?
Where the required electrical or electronic control configuration is included, the bench can support practical training around applicable circuits, sensors, actuators, measurements, and system analysis. The exact scope depends on the selected diesel engine platform and approved configuration.
6. What kind of practical measurements can be performed?
The measurement scope is determined by the configured test points and interfaces rather than by the bench name alone. Where applicable, trainees can use the specified interfaces to perform electrical or system checks and analyze the resulting measurements.
7. Can a Diesel Engine Training Bench support different levels of engine training?
Yes. The configuration can be defined according to the required training depth, from engine system identification and operating observation to measurement, maintenance, troubleshooting, and applicable diagnostic tasks.
8. What should be confirmed before selecting a Diesel Engine Training Bench?
The key points are the required diesel engine platform, intended practical tasks, whether engine operation is required, measurement or diagnostic requirements, and the expected training scope. Confirming these points first helps define the appropriate equipment configuration.
Related Automotive Training Equipment
The Diesel Engine Training Bench focuses on practical diesel engine operation, system analysis, measurement, maintenance, and troubleshooting. Related equipment can extend training into diesel electronic control, broader automotive electrical systems, or comprehensive automotive diagnosis.

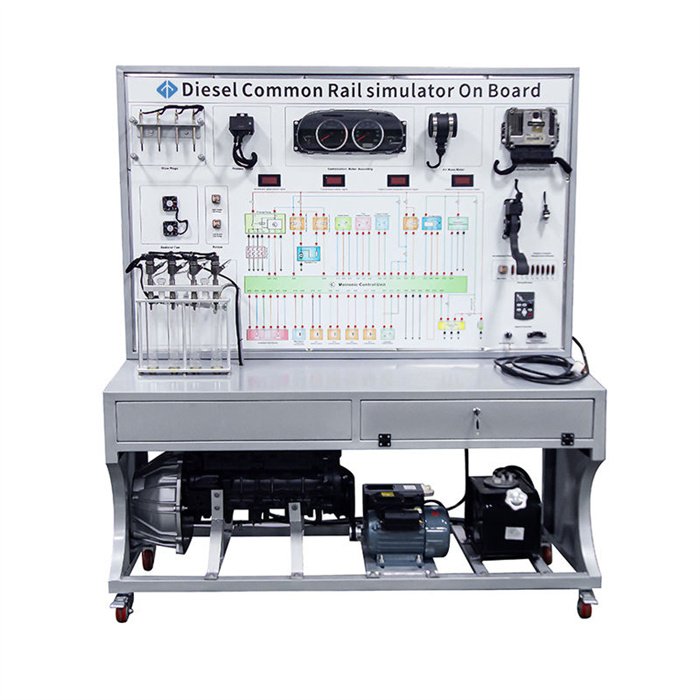

Focuses on common rail electronic control, signal testing, and fault diagnosis.
Extends training to broader automotive electrical systems and circuit analysis.
Supports broader automotive electronic diagnosis and fault analysis training.
