Automotive Light System Trainer Equipment
Functional Features
This trainer is built around four core functions that support both teaching and hands-on diagnosis. These features are designed to bridge theory and practice in automotive lighting system training.
Complete Lighting System Integration

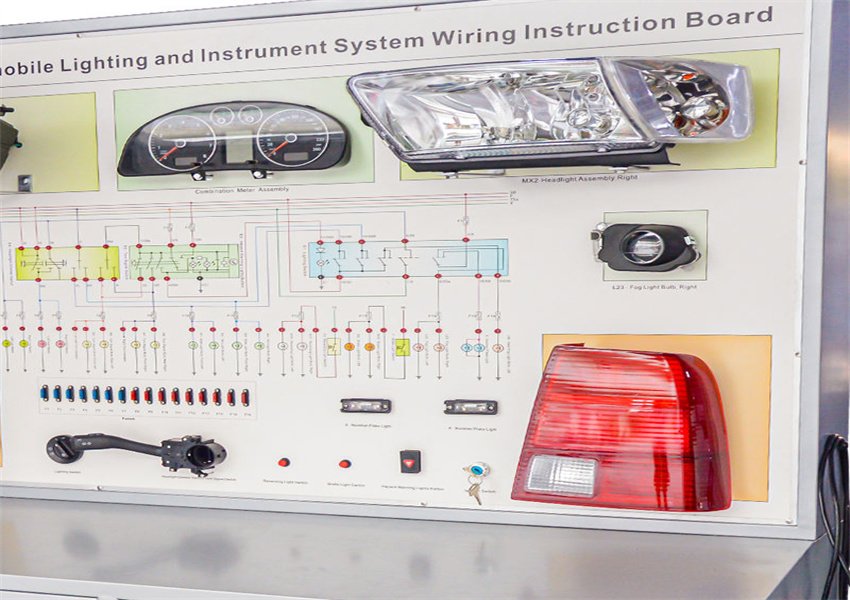

The system integrates all major external lighting subsystems onto a single platform: headlights (low/high beam), fog lamps, turn signals, clearance lamps, combination tail lamps, license plate lamp, brake lights, reverse lights, and hazard warning lights. All components function as in an actual vehicle. Powered by standard 220V AC, converted internally to 12V DC—no battery needed, with short-circuit protection.
Intuitive Visual Panel Layout

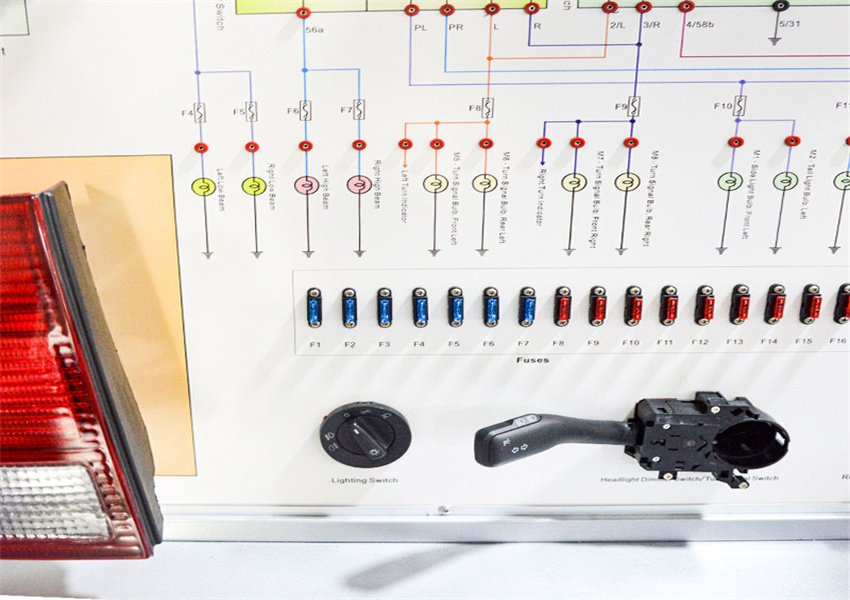

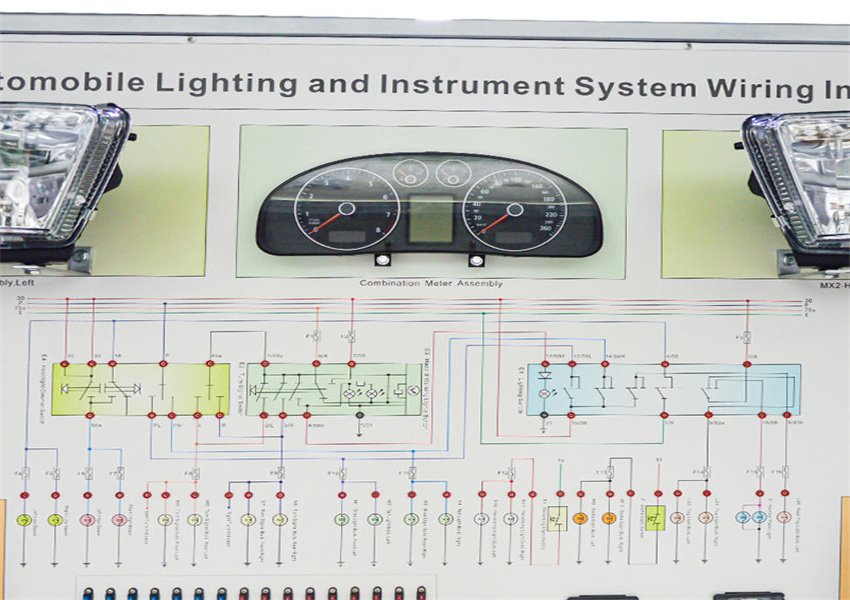

The panel surface features a color-coded circuit diagram positioned alongside corresponding physical components, clearly illustrating the relationship between electrical symbols and actual hardware. This visual mapping accelerates student comprehension and reduces the time instructors need to spend on basic orientation.

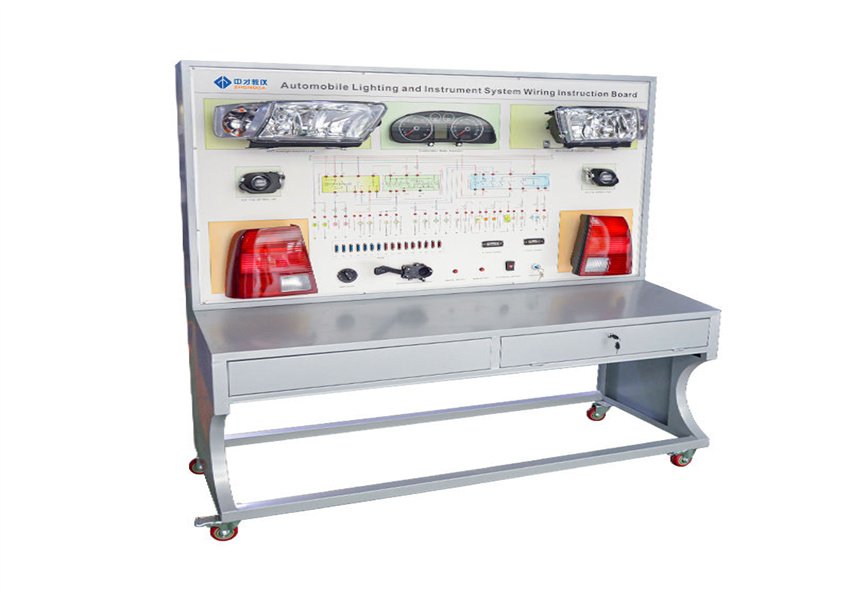

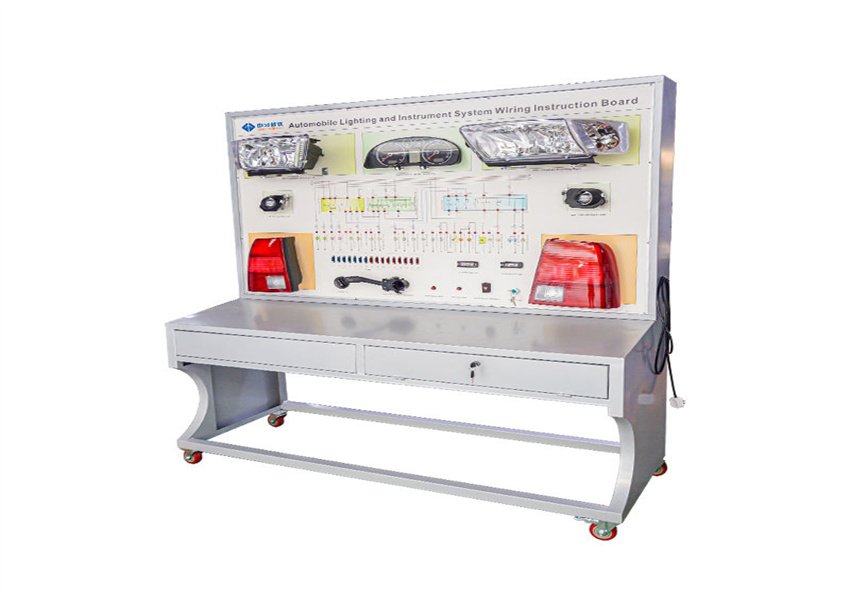

Durable Mobile Framework
Constructed from 1.5mm cold-rolled steel, stamped and powder-coated for corrosion resistance. Equipped with heavy-duty self-locking casters for secure positioning during use and convenient mobility between classrooms and workshops. The base features a 40cm desktop for convenient placement of teaching materials and lightweight testing instruments.
System Composition & Standard Configuration
Key Subsystems Covered
- Headlight system (low/high beam) – demonstrates beam switching and leveling control
- Fog lamp system – front and rear fog lamp operation
- Turn signal and hazard warning system – flashing logic and relay control
- Clearance and tail lamp system – position lighting and tail light circuits
- Brake light system – brake switch activation and circuit
- Reverse light system – reverse switch activation and circuit
- License plate lighting – rear plate illumination circuit
- Hazard warning system – emergency flashing circuit
Standard Configuration (per unit)
- Complete lighting components – headlights, fog lamps, turn signals, clearance lamps, combination tail lamps, license plate lamp, brake light switch, reverse light switch – 1 set
- Lighting switches – combination switch, light switch, hazard warning switch – 1 set each
- Ignition switch – OEM component – 1 unit
- Flash relay – OEM component – 1 unit
- Fault setting module – manual switch type (intelligent optional) – 1 set
- OBD diagnostic socket – 16‑pin standard – 1 set
- Mobile stand – steel frame with self‑locking casters, including power transformer, circuit breaker, and fuse box – 1 unit
- Test lead set – with safety-terminal connectors – 1 set
Applications and Teaching Levels
This system is appropriate for intermediate and advanced automotive programs (typically Year 2 and above). It supports a wide range of training activities, including:
- Lighting system component identification and functional testing
- Wiring diagram reading and circuit tracing exercises
- Voltage drop and continuity measurements
- Relay and fuse diagnostic procedures
- Fault code retrieval and interpretation
- Systematic fault diagnosis using logical troubleshooting strategies
Technical Parameters
The following technical specifications apply to the standard configuration of this training system. Values are based on actual production samples and may vary slightly depending on optional modules or customization requirements.
- Power Supply：AC 220V ± 10%, 50Hz
- Operating Voltage：DC 12V
- Operating Temperature：-10°C ~ +40°C
- Panel Material：Aluminum composite panel
- Casters：Self‑locking
Applications and Teaching Levels
This system is appropriate for intermediate and advanced automotive programs (typically Year 2 and above). It supports a wide range of training activities, including:
Lighting system component identification and functional testing
Students learn to recognize and test headlights, fog lamps, turn signals, tail lamps, relays, switches, and sensors using multimeters and basic test equipment.
Wiring diagram reading and circuit tracing exercises
Students practice reading factory wiring diagrams and tracing actual circuits on the panel to understand power distribution, ground paths, and signal flow.
Voltage drop and continuity measurements
Students perform voltage drop tests across connectors and switches, and check continuity to verify circuit integrity and identify high-resistance points.
Relay and fuse diagnostic procedures
Students diagnose relay and fuse failures using circuit testing methods, and learn to interpret fuse ratings and relay control logic.
Fault code retrieval and interpretation
Using the OBD diagnostic port, students retrieve Diagnostic Trouble Codes (DTCs) and interpret their meanings to identify system faults.
Systematic fault diagnosis using logical troubleshooting strategies
Students apply a structured diagnostic process: observe symptoms, analyze possible causes, isolate the fault, and verify repairs.
Customization Services
We offer OEM/ODM options to meet specific project requirements, including:
- Lighting System Configuration
- Custom frame dimensions and structural configurations
- School or company logo printing on the panel
- Custom paint color selection
- Multi‑language labels and documentation
Technical Support
Technical support can be provided according to the equipment configuration and project requirements.
Support may include:
- Product Operation Guidance
- Installation Guidance
- Technical Documentation
- Equipment Instructions
- Training Video Support
- Custom Configuration Support
Why Choose Our Automotive Training Equipment?
/01
Integrated Lighting Configuration
Multiple common automotive exterior lighting functions are available on one training platform.
/02
OEM & ODM Service
OEM and ODM services are available for B2B customers requiring customized automotive training equipment.
/03
Project Support
The equipment is suitable for vocational education, technical training, automotive training centers, and related education projects.
Frequently Asked Questions
What is an Automotive Light System Trainer Equipment?
It is a practical training platform used to demonstrate and practice automotive exterior lighting systems, including lighting controls, electrical circuits, system operation, and electrical testing.
What lighting functions are included?
The equipment supports practical training for low beam, high beam, fog lamps, brake lamps, reversing lamps, turn signals, and hazard warning lamps.
Can the equipment be used for electrical testing?
Yes. The training panel includes detection terminals for electrical signal measurement and circuit testing. Applicable measurements include resistance, voltage, current, and frequency signals.
Who is this automotive lighting training equipment suitable for?
It is suitable for vocational schools, technical colleges, automotive training centers, automotive education institutions, and automotive training laboratories.
Can you provide Custom Training Equipment?
Yes. Custom Training Equipment can be discussed according to required lighting functions, training configurations, panel layouts, equipment dimensions, and other project requirements.
Do you provide OEM and ODM services?
Yes. OEM and ODM services are available for B2B customers and automotive education projects requiring customized training equipment.
Can this equipment be combined with other automotive training equipment?
Yes. It can be used as an individual lighting training unit or combined with other automotive electrical, engine, diagnostic, EV, and chassis training equipment according to the training program.
